Antistatic Steel Raised Access Floor System

Surfface(PVCstrips)

Surfface(NO strip)

Bottom

Installation

More information about panel
Product:FS800-60035
Size:600mmx600mmx35mm
Weight:approx13kg/pc
1x20'contain:1400pcs
Factory Daily Ability:4000pcs
Color: gray(can be selected)
Tolerance:
Width and Length:-0.4~0.0mm
Panel thickness: +0.30mm
Level:<0.6mm
Pedestal,plated with zinc ,the laying height can often be  freely  selected in range of  8-30CM  and also can meet requirements of different users, the load bearing capacity is not less than 20KN.  Attention:  With  regard   to bearing loads of excessive heavy equipment, the loading  problem can be   solved by adding pedestals under the floor.
Stringer, which is wholly plated with zinc used for Steel, woodcore and ventilation raised  access floor.

More Accessories...

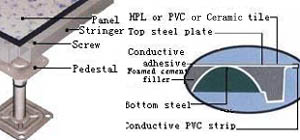

System assembly:

  The system is composed of panel, stringer and pedestal. The stringer and pedestal that is vertically adjustable are connected together with screws, which constitute stable bottom bearing system. the panel was inlaid in the square lattices enclosed by stringers.


 It is made of quality steel plate, which is stretched  forming, punched, point welded and plastic  sprayed with bubble  cement filler filled in its inner cavity. The fire-resistant decoration covers (HPL or PVC or Ceramic tile etc.) that can endure high temperature adhere to its surface. The pedestals and  stringers are wholly plated with  zinc and the height of pedestal is adjustable and can be self-locked.
Applicable Fields:
  Electrical-controlled classroom,Computer room,Programmed control equipment room, Power station control room and fields with aerial and anti-static requirements.
Features:
Surface is treated with static electricity painting,good anti-corrosion.
High precision of dimensions, good interchangeability.
All steel  structure with high strength, strong anti-impact ability.
Anti-static, Fire-proof,water-proof and dust-proof.
Floor can be cut willfully and easy for installation of its accessories.
Under part space can be used for air-conditioning ventilation.
Specification and technical parameters:
TYPE NAME SIZE CONC.LOAD
UNIFORM LOAD N/m2
SYSTEM RESISTOR OHM
LB N KG
FS500-60030 ANTI-STATIC STEEL RAISED ACCESS FLOOR 600X600X30
500
2335 238
12500N
105-1010
FS668-60030
668
3120 318
12500N
105-1010
FS800-60030
800
3502 357
12500N
105-1010
FS1000-60030
1000
4450 454
12500N
105-1010
FS1250-60030
1250
5563 568
12500N
105-1010
FS800-60035 600X600X35
800
3502 357
12500N
105-1010
FS1000-60035
1000
4450 454
12500N
105-1010
FS1250-60035
1250
5563 568
12500N
105-1010
FS1500-60035
1500
6674 681
12500N
105-1010
